Released on the Supabase platform today, pg_jsonschema is a Postgres extension
which adds JSON Schema validation support for json
and jsonb
data types.
The use-case for JSON validation
Despite Supabase being an SQL shop, even our most zealous relational data model advocates (begrudgingly) recognize some advantages to the document data model. Mainly, if some complex data will always be consumed together, a document data type can be a good fit.
For Example:
If our application receives data via a webhook:
_21{_21 "status_code": 200,_21 "checksum": "89b623f6332d2b9b42b4e17eaf1bcc60"_21 "headers": {_21 "Content-Type": "application/json",_21 "Last-Modified": "Tue, 09 Aug 2022 09:14:10 GMT"_21 },_21 "payload": {_21 {_21 "success": true,_21 "content": {_21 "account_id": "d928b484-16bd-4f10-a827-3eb959b4cc14",_21 "event": "SUBSCRIBED",_21 "subscriptions": [_21 {"subscription_id": 481, "exp": 1660050940},_21 {"subscription_id": 121, "exp": 1660041852},_21 ]_21 }_21 }_21 }_21}

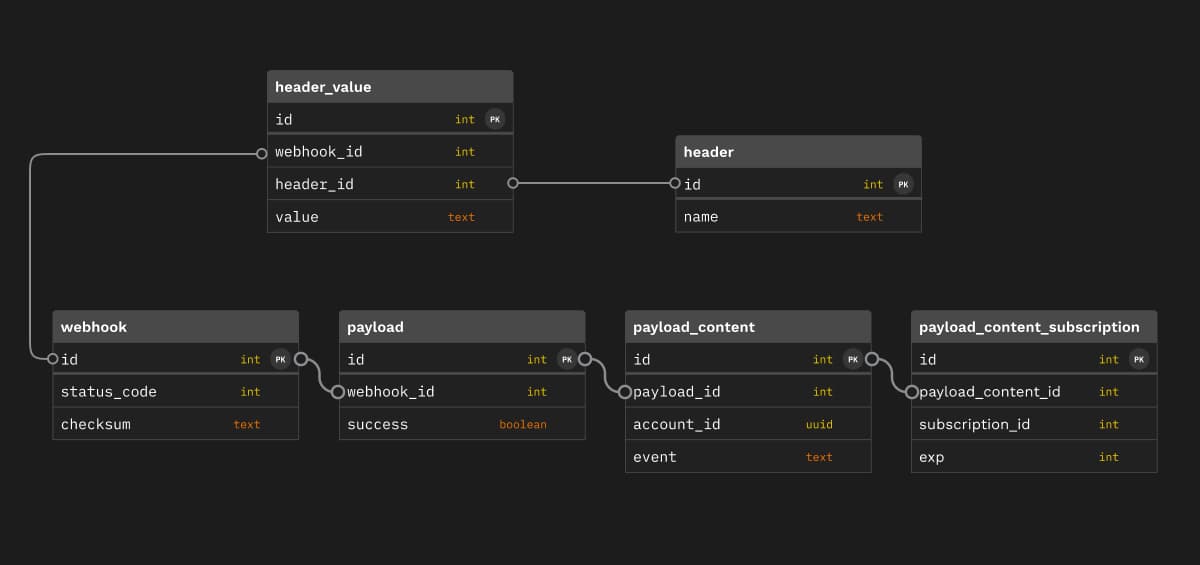

A reasonable swing at normalizing that data into tables might look like this:
That's a lot of architecting! Moreover, the query to recover the original input requires 5 joins!
A solution that aligns better with our intent would be to persist whatever we receive from the external service so long as it meets a minimum set of requirements.
With Postgres' json
data type we can achieve half of that goal.

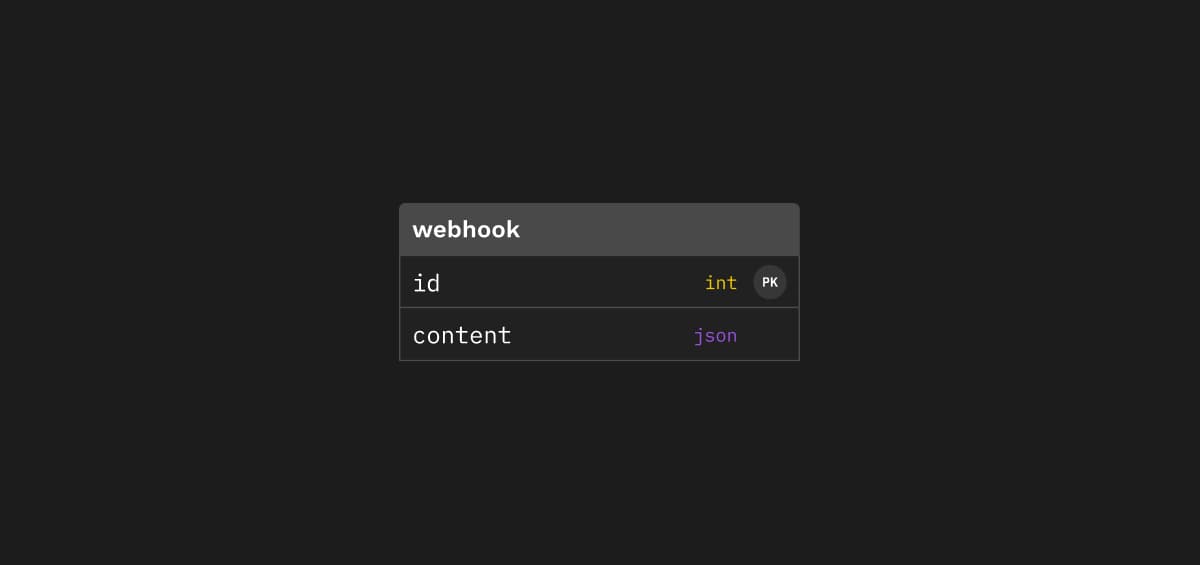

Treating the webhook contents as a json
document simplifies our data model. It is also robust to changing payloads and more efficient to query, update, and delete.
Now what about this part?
so long as it meets a minimum set of requirements
Challenges
The flexibility of document types also comes with some downsides.
The schema of the json payload from the previous example is a little intense for a blog post, so let's instead say we intend for a table's json
column to hold objects with a string
attribute named foo
and no additional attributes.
Without constraints, the setup would be:
_10create table some_table (_10 id serial primary key,_10 metadata json not null_10);_10_10insert into some_table (metadata)_10values (<SQL Input>);

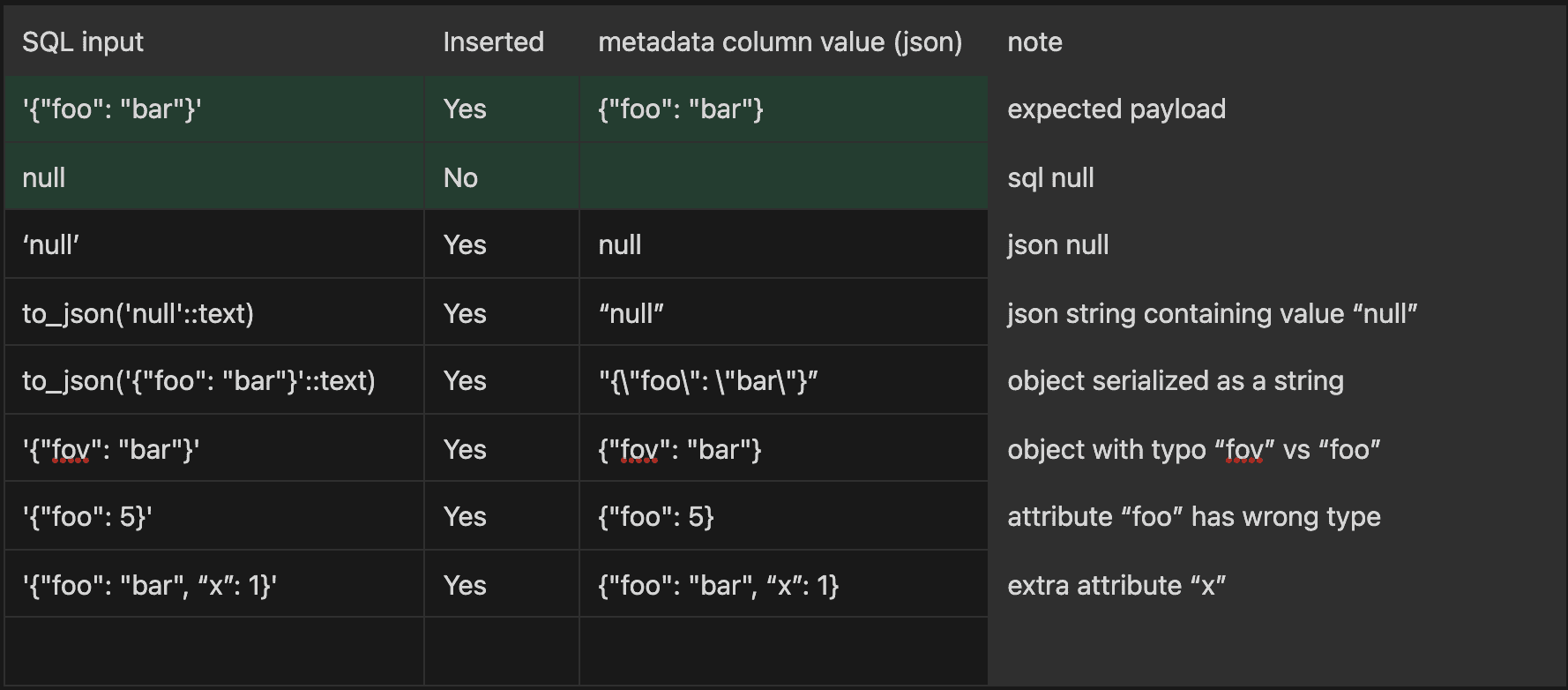

But the resulting schema is much more permissive than our intent. When inserting a mix of correct and incorrect values:
Only 2 of our 8 test cases were handled appropriately by our data model.
A core strength of SQL databases is their ability to constrain data's types, nullability, referential integrity, uniqueness, and even arbitrary developer-defined rules. Those constraints are a lot to sacrifice to gain the convenience of document types.
Fortunately, the challenge of validating json
documents isn't specific to SQL databases. NoSQL/Document databases, like MongoDB,
optionally enforce data constraints so there's plenty of prior art for us to draw from.
JSON Schema
JSON Schema is a specification for validating the shape and contents of json
documents.
It can describe constraints for documents similar to those applied by relational databases.
Translating our constraints from the previous example into a JSON Schema we get:
_12// objects with a string attribute_12// named foo and no additional attributes_12{_12 "type": "object",_12 "properties": {_12 "foo": {_12 "type": "string"_12 }_12 },_12 "required": ["foo"],_12 "additionalProperties": false_12}
Which is a formal and human-readable description of our intent. A tutorial on the JSON Schema language is out-of-scope for this article but you can find a full introduction in their guide.
So now we have:
✅ flexible document data type → json
✅ a language to describe constraints on json
documents → JSON Schema
❌ a way to enforce JSON Schema constraints on json
documents in Postgres
pg_jsonschema
pg_jsonschema is a Postgres extension that can validate json
and jsonb
data types
against a JSON Schema. The extension offers two functions:
_10-- Validates a json *instance* against a JSON Schema *schema*_10json_matches_schema(schema json, instance json) returns bool_10_10-- Validates a jsonb *instance* against a JSON Schema *schema*_10jsonb_matches_schema(schema json, instance jsonb) returns bool
We can use those functions in combination with a check constraint to more completely describe our data model.
_24create table some_table(_24 id serial primary key,_24 metadata json not null,_24_24 check (_24 json_matches_schema(_24 schema :='{_24 "type": "object",_24 "properties": {_24 "foo": {_24 "type": "string"_24 }_24 },_24 "required": ["foo"],_24 "additionalProperties": false_24 }',_24 instance := metadata_24 )_24 )_24);_24_24insert into some_table(metadata)_24values_24 (<SQL input>);

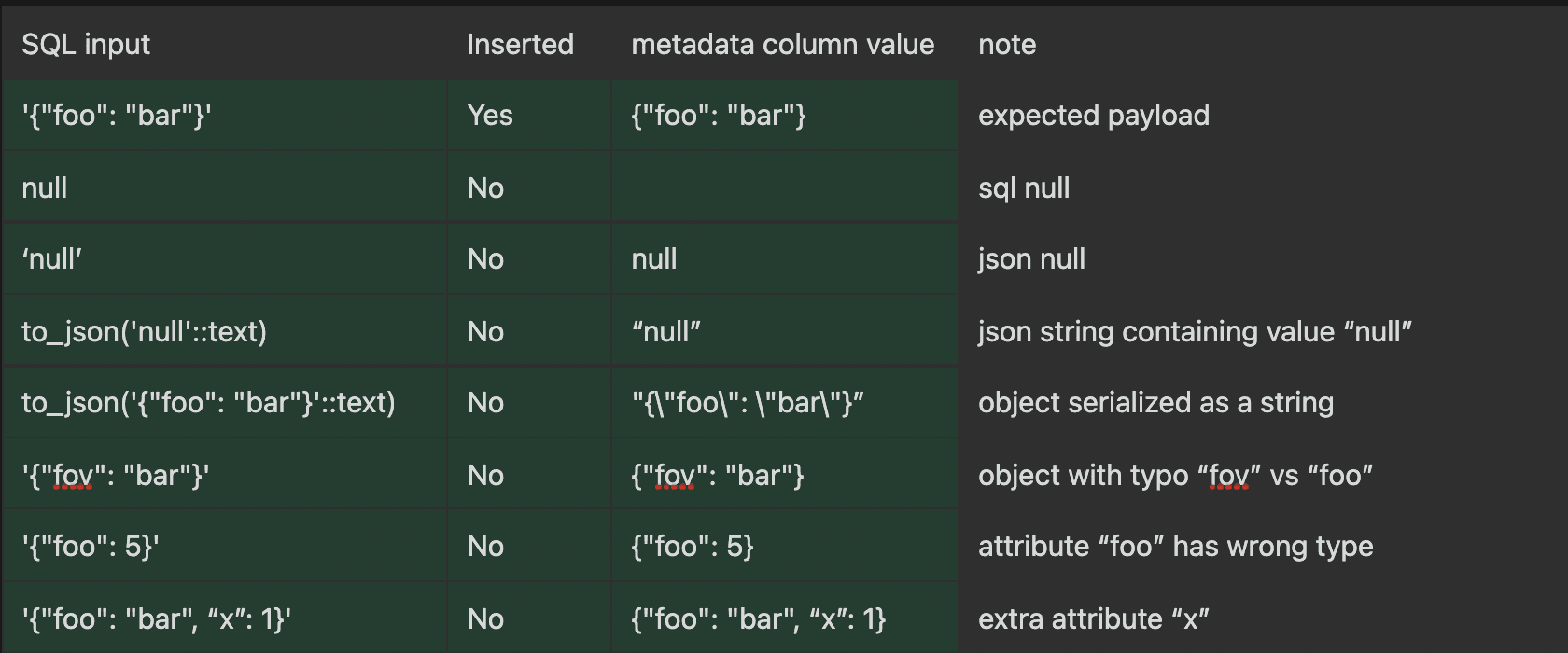

With that check constraint in place, we re-run the same test cases:
Now all 8 tests are handled correctly. In cases where records failed to insert, Postgres throws an error referencing the failing constraint.
ERROR: new row for relation "some_table" violates check constraint "some_table_metadata_check"
DETAIL: Failing row contains (1, null).
SQL state: 23514
With these tools you can wield the flexibility of json
/jsonb
data types without sacrificing the guarantees of a well specified data model!
To get started with pg_jsonschema
, fire up a new supabase project and enable the extension with
_10create extension pg_jsonschema;
or follow the Docker Compose instructions in the repo's README.
